Your Line Leak Detector Might Not Be Doing Its Job

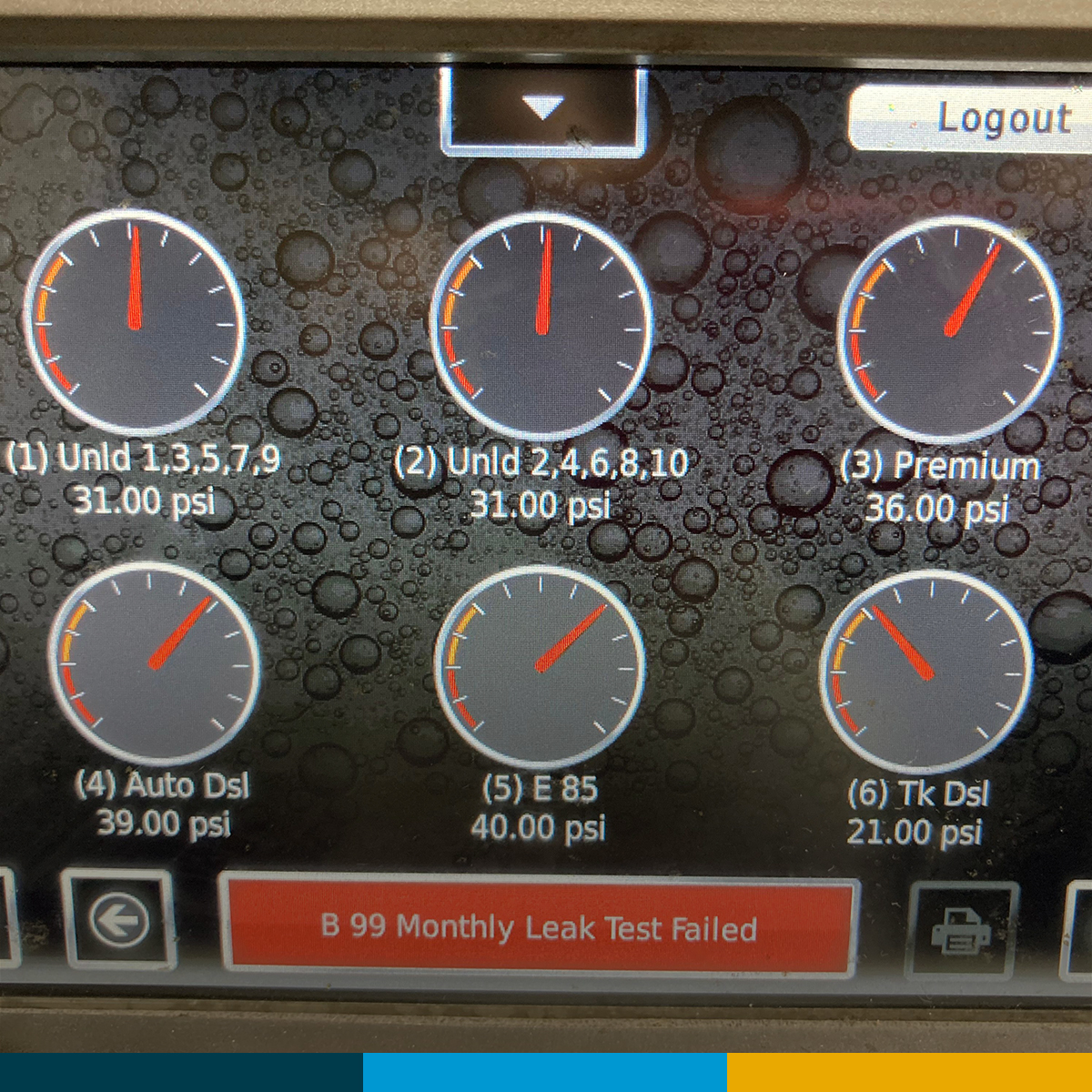

Your ATG runs a line leak test every time the pumps shut off. But when was the last time anyone confirmed the results were accurate, or even reviewed them?

Line leak detectors are one of the most important pieces of compliance equipment on a fuel site, and one of the most ignored. They monitor the pressurized piping between your underground tanks and your dispensers. If there is a breach in that piping, the line leak detector is supposed to catch it before fuel reaches the ground.

The problem is that most operators never think about them. They are mechanical or electronic devices installed inside the submersible turbine pump (STP), and they work quietly in the background every time a dispenser shuts off. When they work, they catch leaks at a rate of 3 gallons per hour or greater. That is the federal standard under 40 CFR 280.44. When they do not work, a slow leak can go undetected for weeks or months, and the first sign of trouble is liquid in a containment sump, an environmental release, or a failed inspection.

If your site uses pressurized piping, which covers the majority of retail fueling sites in the country, line leak detection is not optional. It is a regulatory requirement. And whether your detectors are mechanical or electronic, they need to be tested on a regular cycle to confirm they are still functioning within spec.

1. What Your Line Leak Detector Actually Does

Every time a dispenser completes a transaction and the pump shuts off, the line leak detector runs a pressure test on the piping. It is looking for a pressure drop that would indicate a breach. Mechanical line leak detectors (the most common type) restrict flow when they detect a leak. Electronic detectors monitor pressure changes and report results through the ATG system.

The test happens automatically. That is the good news. The bad news is that operators tend to treat automatic as the same as infallible. A mechanical line leak detector can stick, corrode, or lose sensitivity over time. An electronic detector can drift out of calibration. In either case, the device passes piping that should fail, or flags piping that is actually sound, and the operator has no way of knowing unless the equipment is tested.

2. When Was the Last Time Yours Was Tested?

Federal regulations require an annual test for line leak detectors. Some states require testing more frequently. The test confirms that the device can detect a leak at 3 gallons per hour (the federal threshold for mechanical detectors) or at the tighter threshold your state may require.

This type of compliance testing is specialized work. Tanknology, the compliance testing division of United Uptime Services, performs tank, line, and leak detector testing at fuel sites nationwide, verifying that each device meets the required detection threshold.

Here is where it gets real for most operators: the annual test is supposed to be documented. That means a test report showing what was tested, what the results were, and whether the device passed or failed. If it failed, there should be a record of what corrective action was taken, whether the device was repaired or replaced, and what the retest results showed.

If you cannot locate your most recent line leak detector test report, you have a gap. An inspector will ask for it, and the absence of that record is itself a finding. It does not matter if the device is working perfectly. If you cannot prove it was tested, it may as well not be.

3. What Happens When One Fails During an Inspection?

When a line leak detector fails a test, the affected dispenser should be taken out of service until the issue is resolved. That means the device is repaired or replaced, the piping is retested, and the results are documented. In many states, a failed line leak detector triggers a mandatory corrective action timeline.

For operators, the real cost is not the repair. Mechanical line leak detectors are relatively inexpensive to replace. The cost is in lost selling time while the dispenser is offline, the follow-up inspection that may be triggered, and the broader compliance review that sometimes comes with it. If an inspector finds one failed device, they tend to look harder at everything else on the site.

The operators who handle this well are the ones who catch failures during scheduled testing, not during inspections. A proactive test that finds a problem gives you time to order parts, schedule the repair, and get the documentation in order. An inspection finding gives you a deadline. Working with a dedicated compliance testing partner like Tanknology keeps testing on a regular cycle so problems are caught early, not during an enforcement visit.

4. What Records Should You Have?

For every pressurized line on your site, your records should include: the most recent annual line leak detector test, the device type (mechanical or electronic), the test result (pass or fail), and any corrective action if it failed. If your site uses electronic line leak detection through the ATG, you should also have the ATG-generated test records available.

These records should be uploaded to your portal, not stored on a clipboard or in a text thread with your service provider. When an inspector asks for your line leak detector test history, you need to produce it quickly and clearly. Tech notes, test results, photos if applicable, and any required compliance forms should all be in one place.

Check local and state requirements for line leak detector testing intervals and documentation standards. Some states require semi-annual testing or have specific reporting forms. Your service provider should know what your state requires, but it is your responsibility as the operator to confirm the records exist.

The Bigger Picture

Line leak detectors are one of those things that work quietly until they do not. Most operators never think about them because they never see them. The device is inside the STP housing, underground, doing its job every time the pump cycles. That is exactly why testing matters. You cannot visually inspect something you cannot see.

The pattern is the same one that shows up across every compliance topic: the equipment exists, the regulation is clear, but the gap is in testing, documentation, and follow-up. The operators who stay ahead of this are not doing anything extraordinary. They have a testing schedule, they keep the records, and they address failures before an inspector finds them.

If you are not sure where your line leak detectors stand, or if your last test reports are hard to find, Tanknology and United Uptime Services can help you get current. From compliance testing to documentation and follow-up repairs, the goal is the same: get it tested, get it documented, and get back to running your site. Contact us to schedule line leak detector testing or talk through what your site needs.
